ASIA'S LEADING
MANUFACTURER & SUPPLIER OF
CE CERTIFIED HVLS FANS
Superior Airflow for Ultimate Comfort and Efficiency
Contact Us to Engineer a Solution
Ferco HVLS Fans (12ft / 16ft / 20ft/ 24ft)
Superior Airflow at best price
Energy Efficiency
HVLS fans are designed to use minimal energy while providing maximum airflow, making them an energy-efficient solution for industrial environments. Their large blades move air more effectively, reducing the need for multiple smaller fans and lowering overall energy consumption.
Cost-Effective Operation
By improving air circulation and reducing the reliance on traditional HVAC systems, HVLS fans help cut down on operational costs. Their low maintenance requirements and long life span further enhance cost-effectiveness, making them a smart investment for industrial facilities.
Improved Industrial Air Movement
In industrial settings, maintaining proper air circulation is crucial for both equipment performance and worker comfort. HVLS fans ensure that air moves uniformly across large spaces, reducing stagnant air and preventing temperature fluctuations.
Low Noise Levels Compared to Traditional Fans
Unlike traditional industrial fans, which can be noisy and disruptive, HVLS fans operate quietly, ensuring a more pleasant working environment. Their silent performance supports communication and productivity without the constant hum of machinery.
Durable for Industrial Operations
Built to withstand the demands of industrial operations, HVLS fans are constructed from durable materials that resist wear and tear. Their robust design ensures reliable performance even in harsh conditions, making them a dependable choice for industrial use.
Technical Specifications
| 12Ft | 16Ft | 20Ft | 24Ft | |
|---|---|---|---|---|
| Blades 5(Nos) | Blades 5(Nos) | Blades 5(Nos) | Blades 5(Nos) | |
| Weight 55(Kgs) | Weight 74(Kgs) | Weight 95(Kgs) | Weight 100(Kgs) | |
| Current 1.5(A) | Current 2(A) | Current 2.2/3.8(A) | Current 2.6/4.5(A) | |
| Power 0.35(kW) | Power 0.6(kW) | Power 1(kW) | Power 1.2(kW) | |
| Max.Speed 100(Rpm) | Max.Speed 75(Rpm) | Max.Speed 60(Rpm) | Max.Speed 55(Rpm) | |
| Max.Air volume 283500(Cfm) | Max.Air volume 346100(Cfm) | Max.Air volume 423775(Cfm) | Max.Air volume 528000(Cfm) | |
| Coverage 7750(Sq.ft) | Coverage 9700(Sq.ft) | Coverage 13000(Sq.ft) | Coverage 16150(Sq.ft) |

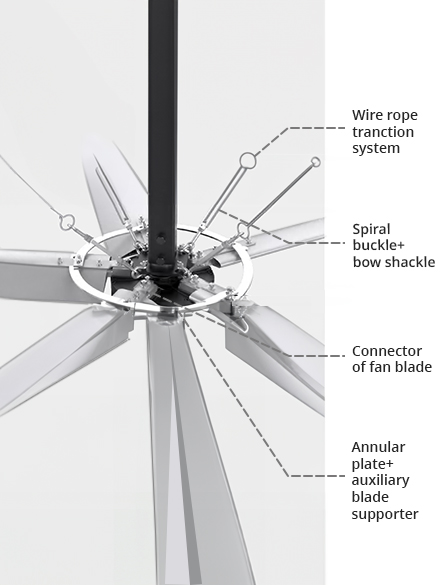

Advanced Safety Design Elements
| Safety Components | Description |
|---|---|
| Wire rope traction system | Ensure the balance of the main body and ensure the main body will not fall under external forces. The stress intensity of each steel wire cable: reach 1000KG. |
| Spiral buckle + bow shackle | Avoid the risk of loose wire rope decoupling in traditional hook structures providing more safety assurance. |
| Annular plate + auxiliary blade supporter | Ensure that the fan blade will not fall and fly out if the main supporter of the fan blade breaks under external force. |
| Connector | The main safety components of the fan to ensure the safety of the fan’s long-term operation. Material: Aluminium 6061-T6, Processing: Forged and CNC precision machining |
| Fasteners | Grade of fasteners: 12.0. All fasteners will be tightened after installation to ensure that they will not loosen permanently. |
| Controlling system | Automatically alarms and slowly stop operation for protection in the event of an accident or overload of the windmill. |
Why Ferco?
- Over 40 Years of Experience
- 2 Years Warranty
- In-Depth Product knowledge
- Thousands of Satisfied Clients
- Founded by a global team of executives and professionals.
- Highest level service guarantee in the industry
- Distributed across 30+ countries
- ISO 9001:2005 Certified Company
See What Clients Are Saying
KENT SMOKE AND FIRE CURTAINS, DUBAI
“
As a company focused on safety and quality, we were impressed with Ferco’s HVLS fans. They have significantly improved the air quality and temperature control in our production areas. The fans are robust, reliable, and require minimal maintenance, which is crucial for our continuous operations. Ferco’s customer service has been exceptional, providing us with the support we needed during installation and beyond. We are very satisfied with our decision to choose Ferco.
EMPEROR EMMANUEL CHURCH, KERALA
“
Our congregation has greatly benefited from the installation of Ferco’s HVLS fans. The fans provide a comfortable and cool environment during our services, even on the hottest days. The quiet operation ensures that our worship experience is undisturbed, and the energy efficiency has significantly reduced our utility costs. We highly recommend Ferco’s HVLS fans for any large space needing effective and efficient cooling
Experience the Benefits of HVLS Fans Today
Ready to enhance comfort and efficiency in your space? Contact us now to get a personalized quote or to learn more about how HVLS fans can transform your environment.
Supplied & Installed in Singapore | Dubai | Odisha | Kerala | Chennai | Pondicherry
